VIVAFLOW 200 SYSTEM(240v) EASY LOAD
详细描述

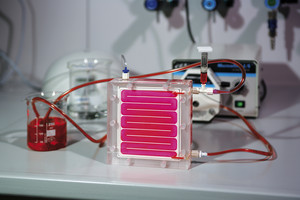

Vivaflow 200 is a ready to use and reusable laboratory crossflow cassette for concentrating up to 5 l samples. The membrane surface per device is 200 cm². One unit comes with all necessary accessories for running the device with a laboratory pump and a size 16 pump head. For speeding up the concentration, two cassettes can be run simultaniously.
技术属性
| Overall length |
126 mm
|
| Overall height |
138 mm
|
| Overall width |
38 mm
|
| Channel width |
10 mm
|
| Channel height |
0,4 mm
|
| Active Membrane Area |
200 cm²
|
| Hold-up volume |
5,3 ml
|
| Minimum Recirculation Volume |
|
| Max. temperature |
60 °C
|
| Non-recoverable Hold-up |
|
| Pump Flow |
200 - 400 ml/min
|
| Operating pressure max. |
4 bar
|
| Main Housing |
Acrylic
|
| Flow Channel |
Acrylic
|
| Membrane support |
Polypropylene (PP)
|
| Seals and O-rings |
Silicone
|
| Pressure indicator |
Polypropylene, SS spring
|
| Flow Restrictor |
Polypropylene (PP)
|
| Fittings |
Nylon (NY)
|
| Tubing |
PVC (medical grade)
|
